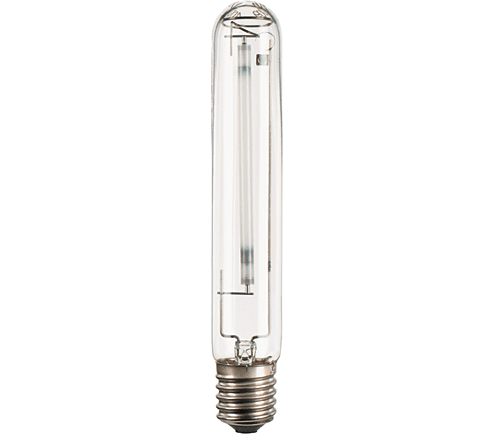

Philips Master GreenPower Plus 600W EL E40 1SL

Note: This ELECTRONIC MODEL EL tolerates lower-spec ballasts of 228 Volts+

The Philips Master GreenPower lamp is specially designed for the horticulture industry with higher lighting power for more more light.

Warnings and Safety • Contains Mercury Hg • If a lamp breaks, ventilate the room for 30 minutes and remove the parts, use gloves. Do not handle broken parts with direct skin contact. Do not inhale in breakage area /use Hg vapour appropriate respiratory protection. Put parts in a sealed plastic bag and take it to your local waste facilities for disposal/recycling. Do not use a vacuum cleaner.

HORTI High Pressure Sodium lamp with clear outer bulb, optimised growth light output and maintenance Benefits • Optimised performance for horticultural applications • High growthlight maintenance safeguards a constant crop quality and quantity over life Features • Clear tubular outer bulb • Ceramic discharge tube with Philips Integrated Antenna (PIA) for a long and reliable lifetime • Advanced getter ensures high growth light maintenance and few early failures • "GreenPower" concept with optimised micromol output (growth light) • "Plus" concept with high efficacy translated into high light output • "Agro" concept with optimised light spectrum Application • Horticultural applications, plant irradiation, assimilation lighting

Specifications

General information

Cap-Base E40 [ E40]

Operating Position UNIVERSAL [ Any or Universal (U)]

Life To 10% Failures (Nom) 10000 h

Life to 50% Failures (Nom) 18000 h

System Description Electronic

Light technical

Color Code 220 [ CCT of 2000K]

Luminous Flux (Rated) (Nom) 85500 lm

Photosynthetic Photon Flux (PPF) 1190 µmol/s

PPF Maintenance 2000 h 98 %

PPF Maintenance 4000 h 97 %

PPF Maintenance 8000 h 94 %

PPF Maintenance 10000 h 93 %

Chromaticity Coordinate X (Nom) 0.533

Chromaticity Coordinate Y (Nom) 0.416

Correlated Color Temperature (Nom) 2000 K

Luminous Efficacy (rated) (Nom) 139 lm/W

Color Rendering Index (Nom) 36

Operating and electrical

Lamp supply voltage 400 V [ 400]

Lamp supply voltage min 228V

Power (Rated) (Min) 615.0 W

Power (Nom) 615.0 W

Ignition Supply Voltage (Nom) 398 V

Re-Ignition Time (Min) (Max) 5 min

Ignition Time (Max) 300 s

Voltage (Max) 244 V

Voltage (Min) 210 V

Voltage (Nom) 228 V

Controls and dimming

Dimmable No

Run-Up Time 90% (Max) 5 min

Mechanical and housing

Bulb Finish Clear

Cap-Base Information -

Bulb Shape T40 [ T 40mm]

Approval and application

Mercury (Hg) Content (Nom) 41.8 mg

Energy Consumption kWh/1000 h 677 kWh

Luminaire design requirements

Bulb Temperature (Max) 400 °C

Cap-Base Temperature (Max) 250 °C
