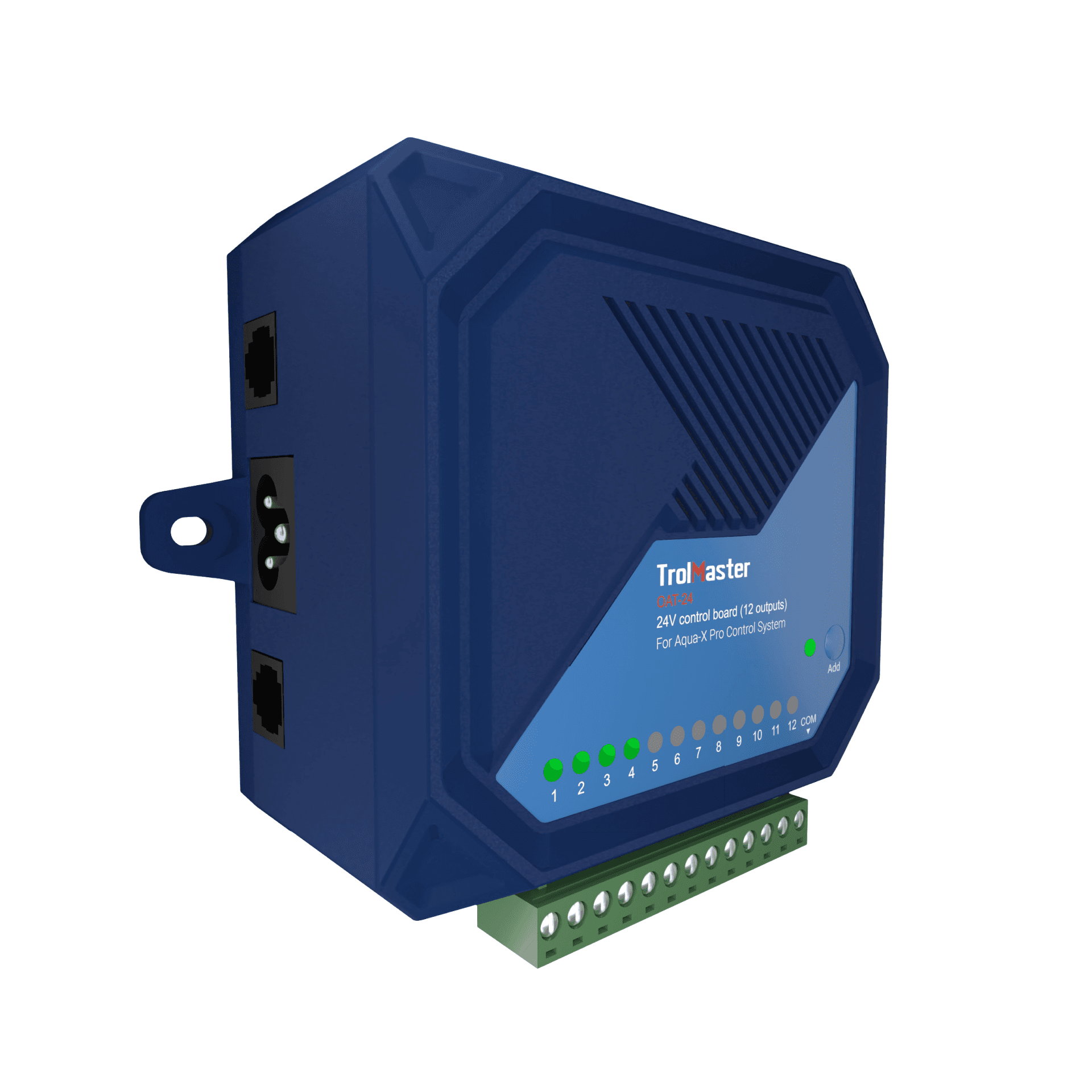

TrolMaster Aqua-X Pro 12 Outputs 24V Control Board（OAT-24）

The OAT-24 module is designed specifically for the Aqua-X Pro Irrigation Control System, featuring 12 individual 24V outputs capable of controlling up to 12 separate irrigation solenoids. By connecting multiple OAT-24 modules, the Aqua-X Pro can manage up to 600 individually controlled 24V valves.

Each solenoid valve can be configured by users with one of five control modes: Recycle, Schedule, Demand, Volume, or Auto-fill. This flexibility allows for easy management of irrigation schedules across multiple nutrients, rooms, and irrigation zones.

Note: When connecting more than one OAT-24 to the NFS Controller, do not share a common wire between OAT-24 units.

Package Content

1x OAT-24

1x 16ft RJ12 Cable

1x Power Cable

1x 13-Pin Phoenix Type Connector

Specifications:

Input Voltage: 240V, 50/60Hz

Max Input Current: 1.7A

Max Output Voltage/Current: 24VAC/0.5A per output

Working Environments: Temperature 32-122°F (0-50°C), Humidity ≤90%

TrolMaster sensors and devices are only compatible with TrolMaster control units.
