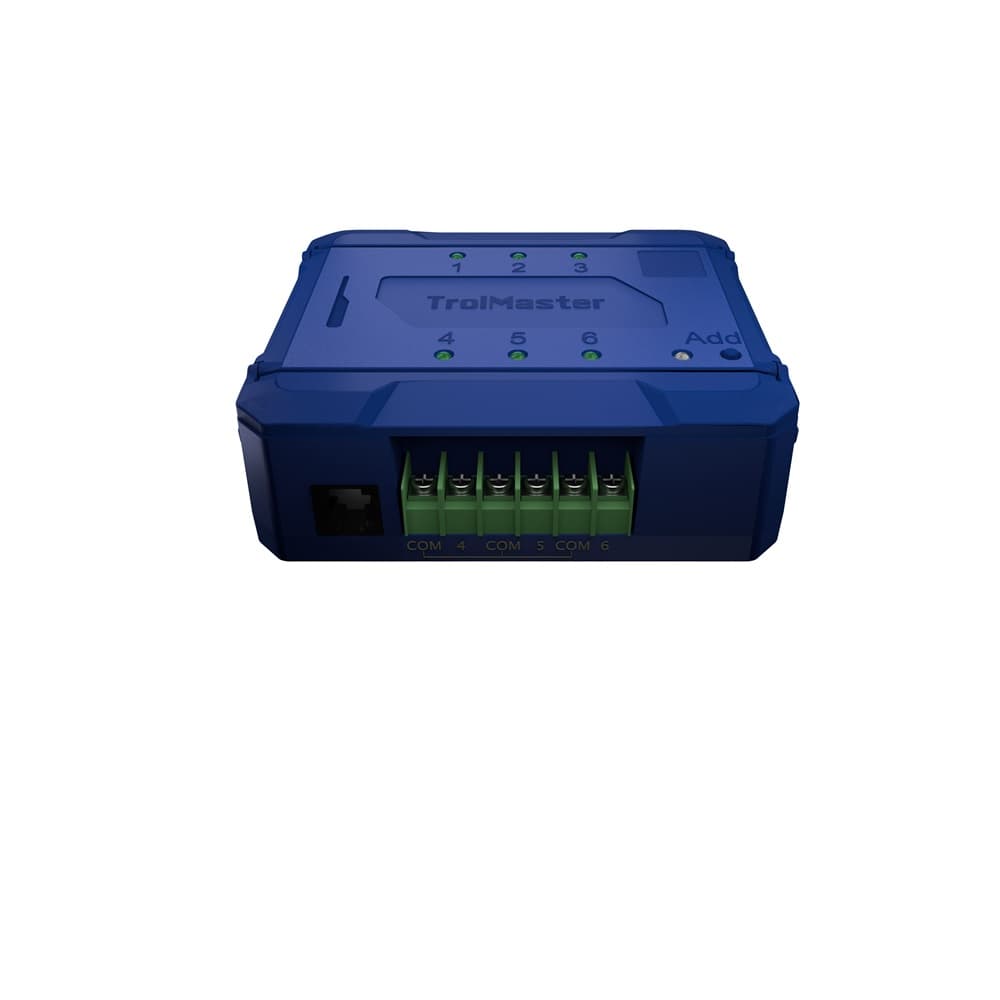

TrolMaster Aqua-X 24v Control Board OA6-24

The OA6-24 control board is designed for efficiently managing multiple 24VAC solenoid valves, offering an effective solution for irrigation control. It allows users to control up to six valves, each with its own individual timer settings. Up to five OA6-24 boards can be connected to a single Aqua-X system, enabling a maximum of 30 individually controlled outputs for your solenoid valves.

Additionally, the Aqua-X can integrate a "master pump link" when used with a DSP-1 in conjunction with the OA6-24. This setup ensures that when any of the 24VAC irrigation zones are activated on the OA6-24, the DSP-1 will automatically trigger the pump.

Key Features:

LED Power Indicator: Clearly shows power status.

Addressing Button: Facilitates easy configuration.

6 Individually Controlled 24V Outputs: Each valve operates independently.

Individual LED Indicator for Each Output: Provides real-time status for each valve.

Double RJ12 Cable Sockets: Enables daisy chain connectivity for expanded control.

TrolMaster sensors and devices are only compatible with TrolMaster control units.
